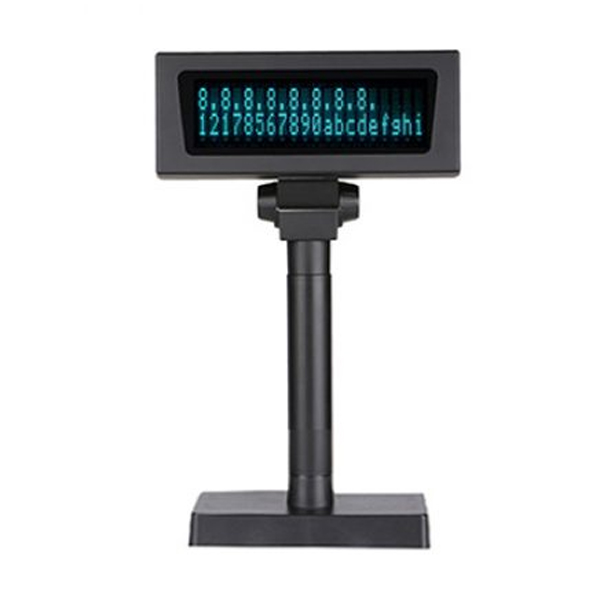

Tcang 2×20 VFD Customer Display

  • High-brightness green screen display for numeric and English characters, available in other national languages, display content of 20 x 2 lines.
  • Adjustable housing angle, adjustable height.
  • We can customize different content and currency according to the special needs of customers.

PRODUCT Description

What is the feature of VFD customer display?

1. High brightness green lattice vacuum fluorescent screen (VFD) screen, can display digital and English characters (other optional languages). The content of the screen is 20 x2 lines.

2. The technology of integration of the electronic industry of the internal chip, uses a PCB board of 1.6 mmFR4 that is the best in the electronics industry. Stable and reliable performance.

3. Compatible with the set of standard instructions “ESC / POS”. You do not need any controller, just turn it on and choose the work mode.

4. Power supply by USB port DC 5Vor.

5. The useful life of the screen can reach up to 300000 hours. It will not discolor or darken. We offer 1 year warranty.

6. Adjustable shell, comfortable visual angle. The height of the pole is adjustable.

7. We can customize different contents and currencies according to the special needs of the clients.

8. Application area: department stores, supermarkets, retail stores, restaurants, coffee shops, fast food stores, etc.

9. Compatible with iOS, Android, Windows and so on.

Specification of VFD Customer Display

Name

VFD220L-Bluetooth Pole

MODE

VFD220L

Pole display command

pole display command

command

Hex n

company

command

Hex n

company

ESC/POS

31H

Epson

UTC-E

36H

UTC

ADM787/788

32H

CD5220

37H

Partner

DSP800

33H

Giga

NCR POS

38H

NCR

AEDEX

34H

PD6000

39H

Logic Controls

UTC-S

35H

UTC

ICD2002

3AH

Puritron

Pole Language

NO

Code

Language

Code

Language

1

PC437

Standard European

10

WPC1252

Western/U.S.A

2

PC850

Multilingual

11

WPC1253

Greek

3

PC852

Latin #2, Slavonic

12

WPC1254

Turkish

4

PC858

Euro

13

WPC1250

Central European

5

PC860

Portuguese

14

PC737

Greek

6

PC863

Canadian French

15

PC775

Baltic

7

PC 865

Nordic

16

PC864

Arabic

8

PC866

Cyrillic #2

17

Farsi

Farsi

9

WPC1251

Cyrillic

Explanation of parameters

NO

Item

Description

NO

Item

Description

1

Display  Method

Vacuum  fluorescent  display

14

Support dimensions

120mm

2

Number of character

40 characters(20 columnsX2 lines)

15

Base  dimensions

187(W)X60(H)

3

Character font

5X7 Dot matrix

16

Viewing  angle

-5—60 degrees

4

Display  color

Green Blue

17

Rotation  angle

Maximum 270  degrees

5

Brightness

700 cd/m2

18

Weight

1.5KG

6

Character  type

96 alphanumeric

13Kinds of international character set

19

Operating temperature

-30—50

7

Character  size

9.0mm x 5.25mm

20

Operating Humidity

30%—80%

8

Power supply

DC5V/1A Power adapter

21

Storage temperature

-40–60

9

Power consumption

2.5W

22

Storage Humidity

10%-90%

10

MTBF

30000 Hours (power on time)

23

Operating system

WIN XP, 2003, 2008, Vista, Win 7, WIN8, Android

11

Communication  Interface

Bluetooth  Class 2

24

pole display command

ESC/POS,CD5220,

UTC-S/UTC-E, ADM787/788, PD6000 AEDEX, NCR POS, ICD2002

12

Baud Rate

2400/9600BPS

25

OPOS  system

EPSON  OPOS

13

Panel dimensions

224(W)X85(H)X45(D)mm

Why choose the portable pos system of the Tcang?

Fast response – Due to the time difference, we guarantee a six hour or less time response. If there is a problem after the sale, we can operate remotely and solve many problems.

Experienced – We only recruit experienced professional and technical personnel, we regularly provide technical personnel with continuing education opportunities to enable them to master the latest technology.

Reputable – tcang has been around since 2010, and our proudest achievement is that a large number of long-term customers trust us year after year.

100% Satisfaction Guarantee – We hope that you are completely satisfied with our service.
