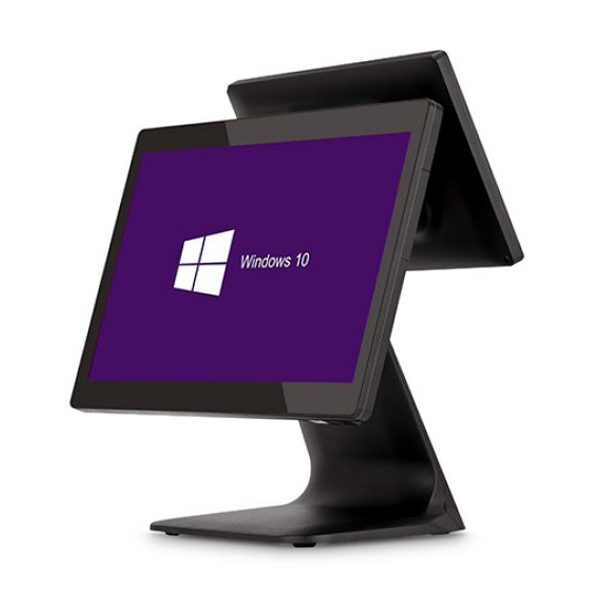

15.6 Inch Windows Touch POS Machine

  • The Windows POS machine with aluminum alloy stand, very easy to remove and install customer display.
  • POS Model: TC-TOUCH-A9
  • CPU: Baytrail J1900 QuadCore 2.0GHz

PRODUCT Description

Tcang 15.6 Inch Touch POS Terminal

Aluminum Base Design, Simple and Stylish

The bracket material of Windows POS machine is aluminum alloy.

Stand back cover can hide the wire.

Can print logo, pattern on POS machine bracket.

Aluminum Base Design, Simple and Stylish

 POS Machine Main Screen

POS Machine Main Screen

15.6 inch HD Large Touch Screen Resolution: 1366* 768 or 1920*1080P Advantage: Capacitive multi-touch screen, excellent operating experience. Higher image quality and longer life.

Easy to Install and Use MSR

The MSR on the side of the POS saves space and is easy to use. No need to install MSR separately, just one device can be completed.

Easy to Install and Use MSR

Single Screen POS Machine

Single Screen POS Machine

2*20 LCD/ VFD

2*20 LCD/ VFD

11.6 Inch Customer Display

11.6 Inch Customer Display

POS Machine Size Main Screen

Length: 381mm, Width: 248mm, Body Height: 335mm

Stand Size: Length: 218mm, Width: 194mm

POS Machine Size

Tcang Windows POS Machine

Windows POS Machine Main Board

CPU

Baytrail J1900 QuadCore 2.0GHz

OS

windows 7/ 8/ 10

Memory

4GB DDRIII (Samsung)

Hard Disk

64GB SSD (mSATA)

LCD

BOE 15.6″ TFT HIGH RESOLUTIONNew screen

Power

+12V DC adaptor

Projective Type Capacitive Touch

I/O Ports

Serial

1 x COM without Power Output (COM 1)

COM2  is   Customer Display

USB

4 in IO panel, (1 beside the power button)

(Internal, reserved for touch screen,   MSR)

LAN

1 x RJ-45, Giga LAN

VGA

1 x DB-15, Female

DC Out

Optional:1 x +12VDC Jack (Customer Display or 2nd Display)

Audio Jack

1 x Line Out, 1 x MIC In,

1 x Internal Speaker

Options

WIFI

For Windows OS

MSR

Interface: USB 3 Track

VFD

Display characters: 2 line  x  20 characters / line Language: Support different country language

LCD

Display characters: 2 line  x  20 characters / line Language: Support different country language

11.6″ customer display

BOE 11.6″ TFT (1366*768)

15.6″ customer display

BOE 15.6″ TFT (1366×768) (Has a sliver frame, which has different design to the main 15.6 inch screen.)

15.6″ display

BOE 15.6″ TFT (1366×768)

Speaker

2 speaker  (If need speaker, it should be installed in our factory.)

LED customer display

Display characters: Single line display Support 8 number only

J1900 motherboard

Baytrail J1900 QuadCore 2.0GHz

Memory 4G

from Samsung

Memory 8G

from Samsung

Hard disk 128GB (mSATA)

from Taiwan Philsom

Win 10 IOT

Windows 10 IOT Enterprise for J1900 motherboard
