15.6 Inch Dual Screen Android POS System

  • The Windows POS machine with aluminum alloy stand, very easy to remove and install customer display.
  • POS Model: TC-TOUCH-A9
  • CPU: Baytrail J1900 QuadCore 2.0GHz

PRODUCT Description

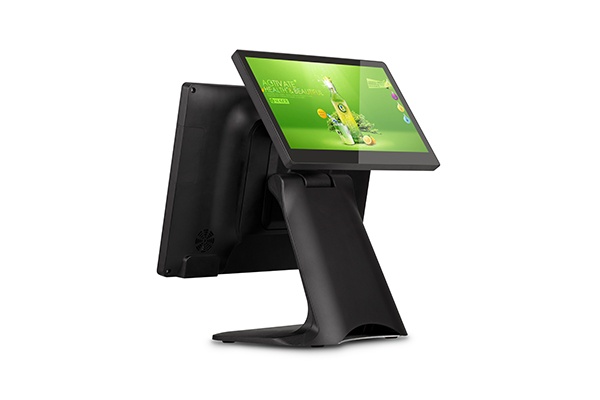

15.6 Inch Dual Screen Android POS System

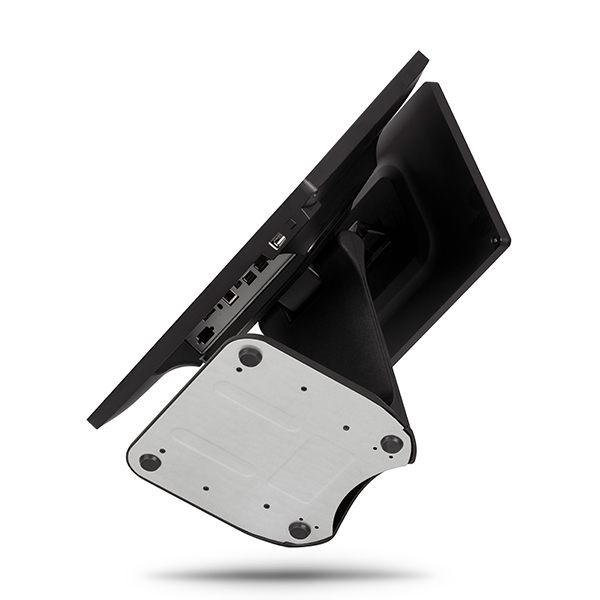

Aluminum Stand Design, Can Hide Cables and Keep Your Desktop Clean

The stand material of android pos system is aluminum alloy.

The cable passes through the inside of the bracket, effectively protecting the cable from damage and keeping the desktop neat.

Can print logo on the bracket of Android POS system, with unique POS terminal.

Aluminum Stand Design, Can Hide Cables and Keep Your Desktop Clean

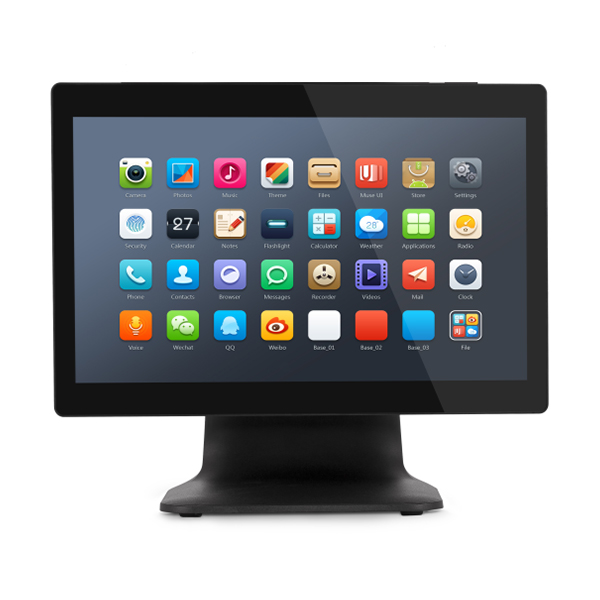

 POS Machine Main Screen

POS System Main Screen

15.6 inch HD Large Capacitive Touch Screen Resolution: 1366* 768 or 1920*1080P Advantage: The screen of the Android POS machine supports multi-point capacitive touch, operation flow, display higher definition, longer service life.

MSR Module of Dual Screen Android POS System

Easy to Install and Use MSR

There is an interface for adding the MSR module on the side of the Android POS system. Users do not need guidance and can be fast in installation.

Easy to Install and Use MSR

Single Screen POS Machine

Single Screen POS System

2*20 LCD/ VFD

2*20 LCD/ VFD

11.6 Inch Customer Display

11.6 Customer Display

POS Machine Size

Main Screen: Length: 381mm, Width: 248mm Body, Height: 335mm

Stand Size: Length: 218mm, Width: 194mm

POS Machine Size

Application of 15.6 Inch Dual Screen Android POS Systems

Restaurant, supermarket, retail, queue, coffee shop, a fast food shop, pizza shop, small business, subway station.

Dual Screen Android POS Terminal

Android POS System Main Board

CPU

RK 3288 Quad core 1.8GHz

OS

Android 6.0 7.0

Memory

2GB DDRIII

Hard Disk

8GB SSD

LCD

15.6″ Main screen

Power

+12V DC adaptor

screen

capacitive multi-touch screen

I/O Ports

TF Card

1

SIM card slot

1

USB

USB x5 (4 in IO panel, 1 beside the power button)

LAN

1 x RJ-45, Giga LAN

TTYS4

2

DC Out

Optional:1 x +12VDC Jack (Customer Display or 2nd Display)

RJ11

1

Audio Jack

1 x Line Out, 1 x MIC In,

1 x Internal Speaker

Options

WIFI

The android motherboard is already with wifi, do not add it

MSR

Interface: USB 3 Track

VFD

Display characters: 2 line  x  20 characters/line Language: Support different country language

LCD

Display characters: 2 line  x  20 characters/line Language: Support different country language

11.6″ customer display

BOE 11.6″ TFT (1366*768)

15.6″ customer display

BOE 15.6″ TFT (1366×768) (Has a sliver frame, which has different design to the main 15.6 inch screen.)

15.6″ display

BOE 15.6″ TFT (1366×768)

Speaker

2 speaker  (If need speaker, it should be installed in our factory.)

LED customer display

Display characters: Single line display Support 8 number only

3G Module

After install the 3G module at first (necessary premise), then the SIM card can be inserted and used.

MOQ

1pcs

Packing

1 pp bag & EPE in a standard export carton
